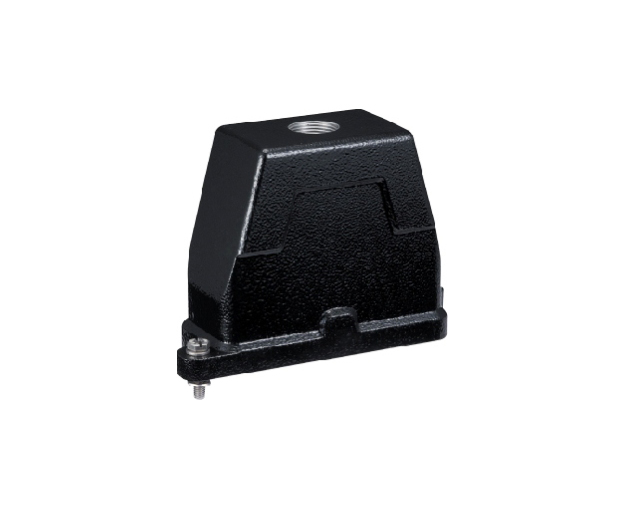

H16BPR-TGHS-2PG21
Type：shell-H16B housing (IP68)
Model：H16BPR-TGHS-2PG21
Num：1921160221
Part：Upper housing
Introduction：H16B high protection shell; top outlet; high structure; axle pin interlock; 2 outlet; PG21
Download：
H16BPR-TGHS-2PG21
Detail
| Material | Cast aluminum alloy |
| Colour | black |
| Interlocking element | |
| ---Interlocking method |
Axle pin interlock |
| ---material | stainless steel |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP68/IP69K |
