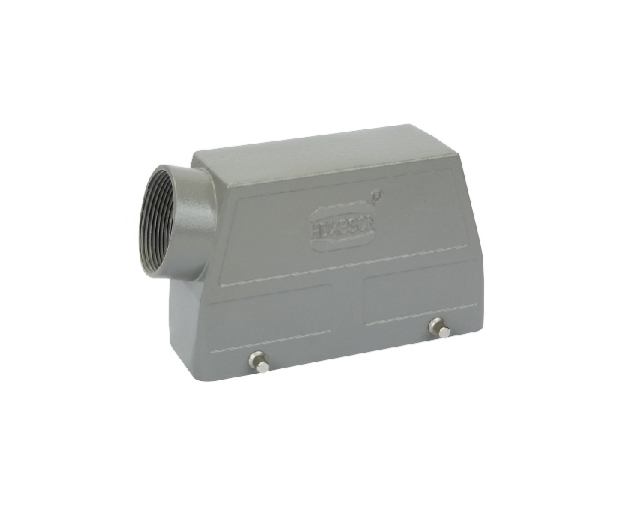

H24B-TSH-M40
Type：shell-H24B housing (IP65)
Model：H24B-TSH-M40
Num：1230240140
Part：Upper housing
Introduction：H24B metal shell; side outlet; high structure; 4 ears; M40
Download：
H24B-TSH-M40
Detail
|
material |
Cast aluminum |
|
colour |
gray |
| Interlocking element | |
| ---Interlocking method |
Metal elastic pressing |
| ---material | (iron) galvanized |
| Sealing element | NBR |
|
Applicable temperature range |
-40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
