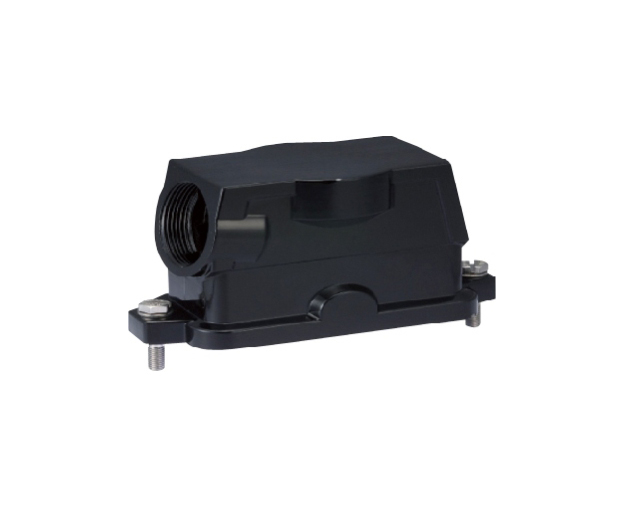

H24BPR-TSHC-M32
Type：shell-H24B housing (IP68)
Model：H24BPR-TSHC-M32
Num：1912240132
Part：Upper housing
Introduction：H24B high protective casing; high structure; side outlet; 2S; M32
Download：
H24BPR-TSHC-M32
Detail
|
material |
Cast aluminum alloy |
|
colour |
black |
| Interlocking element | |
| ---Interlocking method |
Bolted |
| ---material | Stainless steel |
| Sealing element | NBR |
|
Applicable temperature range |
-40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP68/IP69K |
