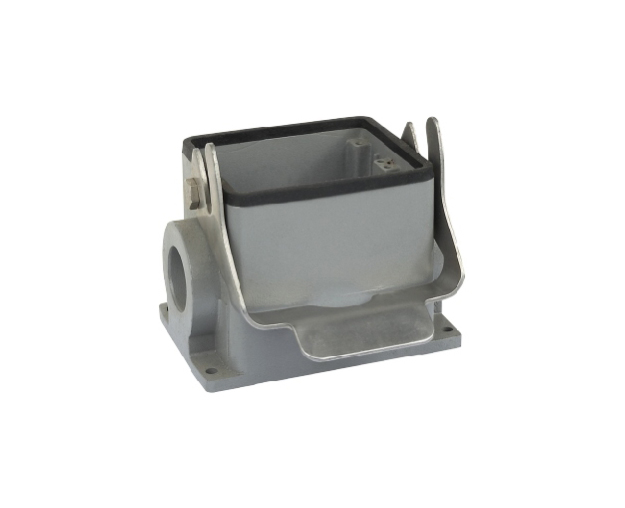

H32B-SGR-LB-PG29
Type：shell-H32B housing (IP65)
Model：H32B-SGR-LB-PG29
Num：1610320129
Part：Lower housing
Introduction：H32B metal shell; surface mounting; common structure; single button; 1 inlet port; PG29;
Download：
H32B-SGR-LB-PG29
Detail
|
material |
Cast aluminum |
|
colour |
gray |
| Interlocking element | |
| ---Interlocking method |
Metal elastic pressing |
| ---material | Stainless steel |
| Sealing element | NBR |
|
Applicable temperature range |
-40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
