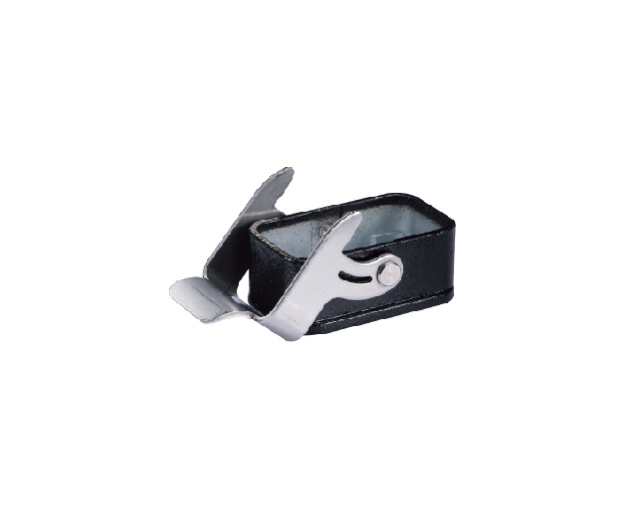

HC-AG-LB
Type：shell-HC housing (IP65)
Model：HC-AG-LB
Num：1340080000
Part：Lower housing
Introduction：HC metal housing; open hole mounting; single button
Download：
HC-AG-LB
Detail
| Surface treatment | Spraying |
| Material | Cast zinc |
| Colour | black |
| Interlocking element | |
| ---Interlocking method | Metal elastic pressing |
| ---Material | stainless steel |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
