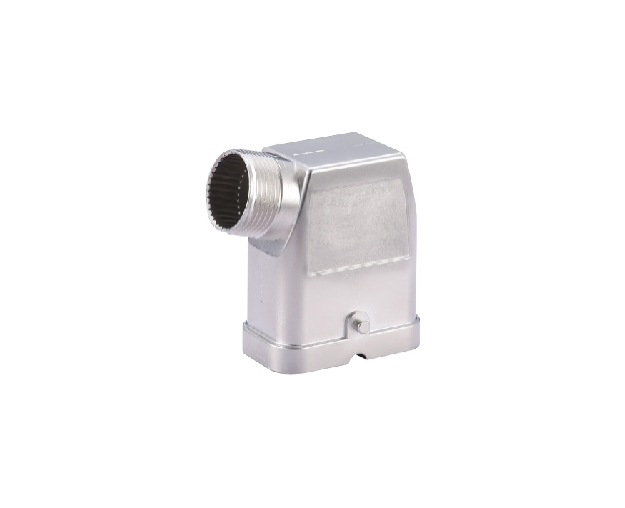

EMC.HC-TSH-RO-M25
Type：shell-HC housing (IP65)
Model：EMC.HC-TSH-RO-M25
Num：1336081025
Part：Upper housing
Introduction：HC nickel-plated casing; side outlet; high structure; 2 ears; M25
Download：
EMC.HC-TSH-RO-M25
Detail
| Surface treatment |
Nickel plating |
| Material | Cast zinc |
| Colour |
Matte nickel |
| Interlocking element | |
| ---Interlocking method | Metal elastic pressing |
| ---Material | stainless steel |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
