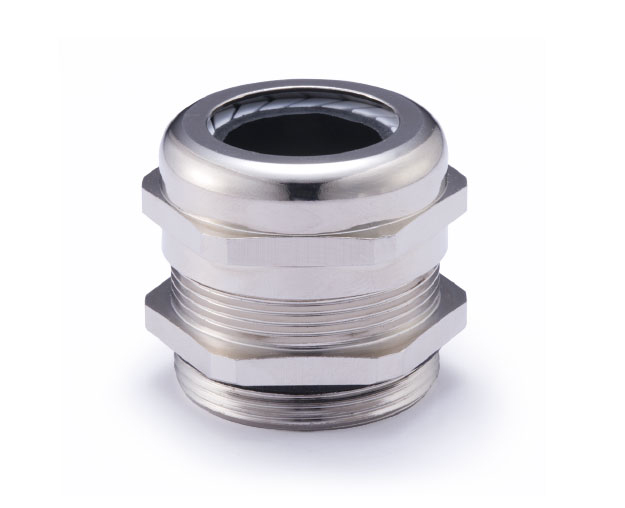

XBS-13.5-MS(D6-12)
Type：Cable Connector-XBS(Metal waterproof joint)
Model：XBS-13.5-MS(D6-12)
Num：3609130101
Part：Cable Connector
Introduction：PG13.5 ordinary metal cable waterproof connector
Download：
XBS-13.5-MS(D6-12)
Detail
|
Ordinary metal cable waterproof connector |
|
| Material | Brass nickel plating |
| Seals | Nylon 6 and nitrile rubber |
| temperature range | Static -40℃-100℃ Dynamic -20℃-80℃ |
| Thread size | PG13.5 |
| Bayonet range | 6-12mm |
| Thread outer diameter | 20.4mm |
| Wrench size | 22mm |
| Thread length | 7.5mm |
