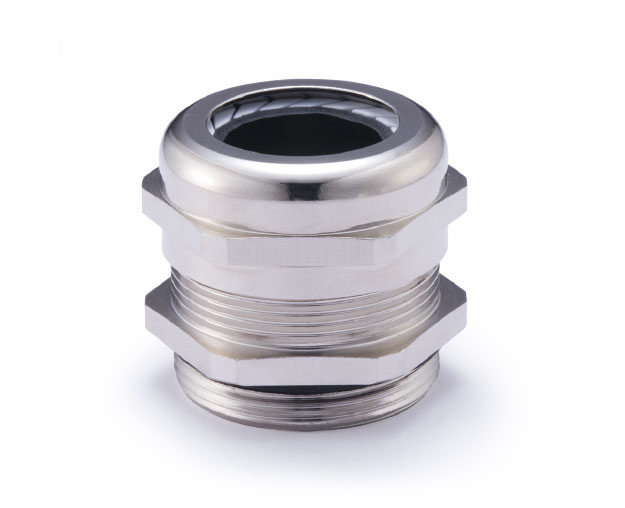

XBS-16-MS(D8-14)
Type：Cable Connector-XBS(Metal waterproof joint)
Model：XBS-16-MS(D8-14)
Num：3609160101
Part：Cable Connector
Introduction：PG16 ordinary metal cable waterproof connector
Download：
XBS-16-MS(D8-14)
Detail
|
Ordinary metal cable waterproof connector |
|
| Material | Brass nickel plating |
| Seals | Nylon 6 and nitrile rubber |
| temperature range | Static -40℃-100℃ Dynamic -20℃-80℃ |
| Thread size | PG16 |
| Bayonet range | 8-14mm |
| Thread outer diameter | 22.5mm |
| Wrench size | 24mm |
| Thread length | 7mm |
