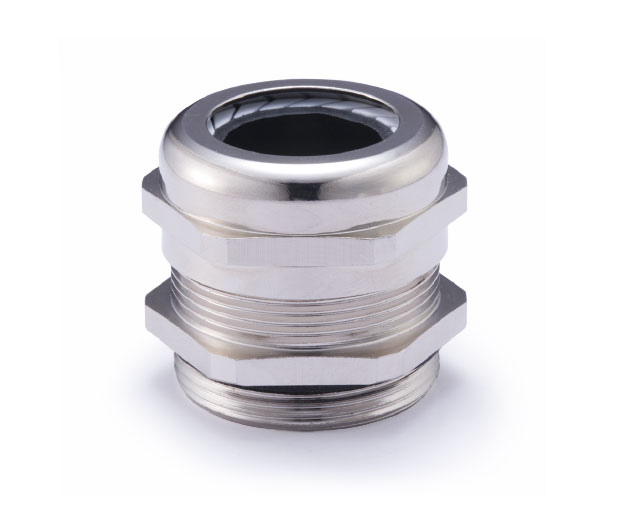

XBS-36-MS(D22-32)
Type：Cable Connector-XBS(Metal waterproof joint)
Model：XBS-36-MS(D22-32)
Num：3609360101
Part：Cable Connector
Introduction：PG36 ordinary metal cable waterproof connector
Download：
XBS-36-MS(D22-32)
Detail
|
Ordinary metal cable waterproof connector |
|
| Material | Brass nickel plating |
| Seals | Nylon 6 and nitrile rubber |
| temperature range | Static -40℃-100℃ Dynamic -20℃-80℃ |
| Thread size | PG36 |
| Bayonet range | 22-32mm |
| Thread outer diameter | 47mm |
| Wrench size | 50mm |
| Thread length | 12mm |
