XBS-16-MT(D4-8)
Type：Cable Connector-XBS(Metal waterproof joint)
Model：XBS-16-MT(D4-8)
Num：3609160112
Part：Cable Connector

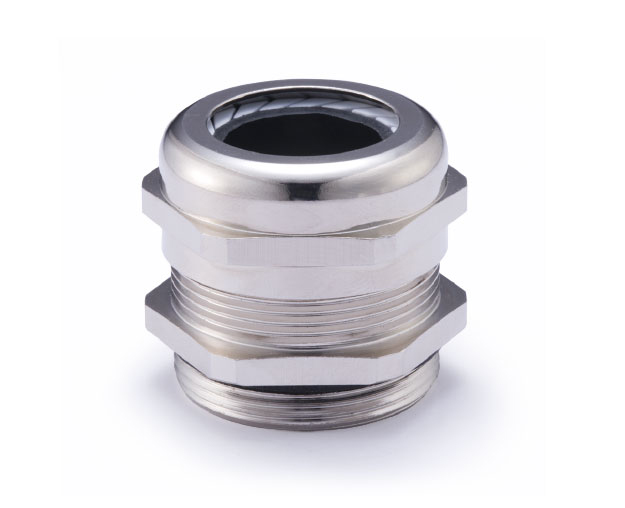

Introduction：M16 ordinary metal cable waterproof connector
Download：
XBS-16-MT(D4-8)
Detail
|
Ordinary metal cable waterproof connector |
|
| Material | Brass nickel plating |
| Seals | Nylon 6 and nitrile rubber |
| temperature range | Static -40℃-100℃ Dynamic -20℃-80℃ |
| Thread size | M16X1.5 |
| Bayonet range | 4-8mm |
| Thread outer diameter | 16mm |
| Wrench size | 17mm |
| Thread length | 6.5mm |
