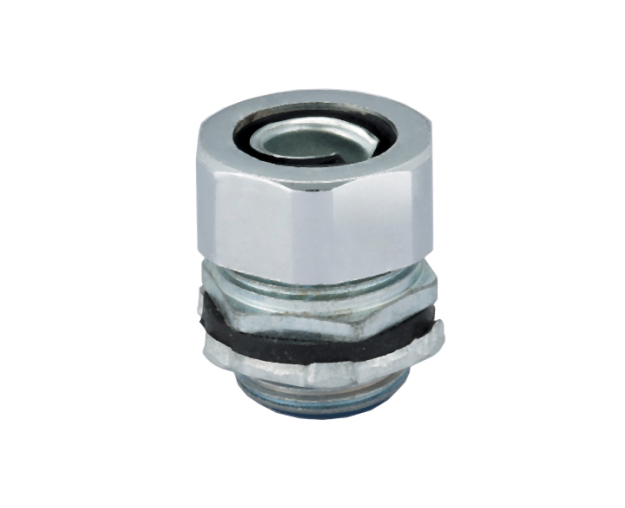

NTC-16-M/D10
Type：Cable Connector-XBS(Externally threaded metal hose connector)
Model：NTC-16-M/D10
Num：3510160125
Part：Cable Connector
Introduction：M16 external thread metal hose connector
Download：
NTC-16-M/D10
Detail
|
Externally threaded metal hose connector |
|
|
Material |
Zinc alloy galvanizing |
|
Seals |
One end is connected to the hose, and the other end is threaded to the box or equipment, which has the characteristics of compact structure and corrosion resistance. |
|
Application |
Motor, cable tray, electrical engineering installation, electric control box, etc. |
|
Thread size |
M16x1.5 |
| With hose | 10mm |
| Thread length | 8mm |
| Outer diameter | 25.5mm |
| Height | 30mm |
