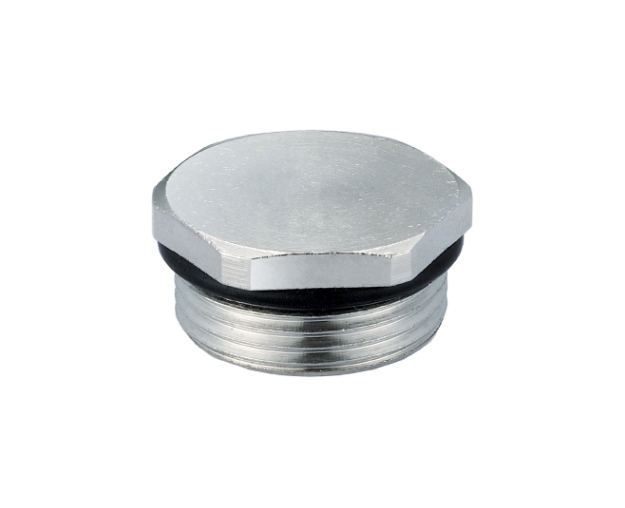

BLIND-7-MS
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-7-MS
Num：3165070101
Part：Cable Connector
Introduction：PG7 metal cover
Download：
BLIND-7-MS
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
PG7 |
| Thread length | 5.0mm |
| Height | 8.0mm |
| Thread outer diameter | 12.5mm |
| Wrench size | 14.0mm |
