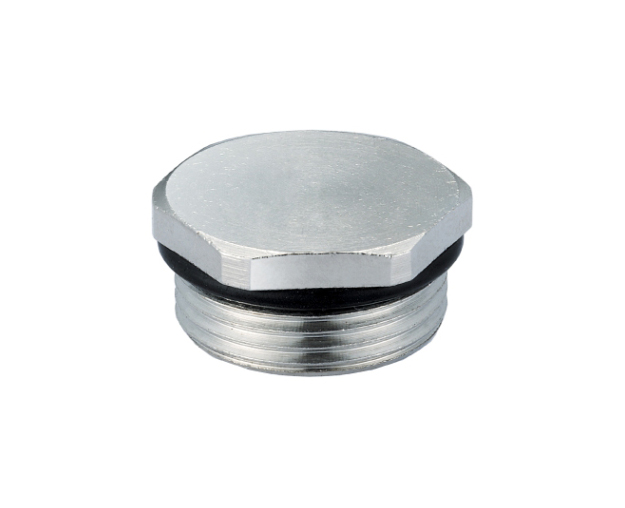

BLIND-13.5-MS
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-13.5-MS
Num：3165130101
Part：Cable Connector
Introduction：PG13.5 metal cover
Download：
BLIND-13.5-MS
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
PG13.5 |
| Thread length | 7.0mm |
| Height | 10.0mm |
| Thread outer diameter | 20.4mm |
| Wrench size | 22.0mm |
