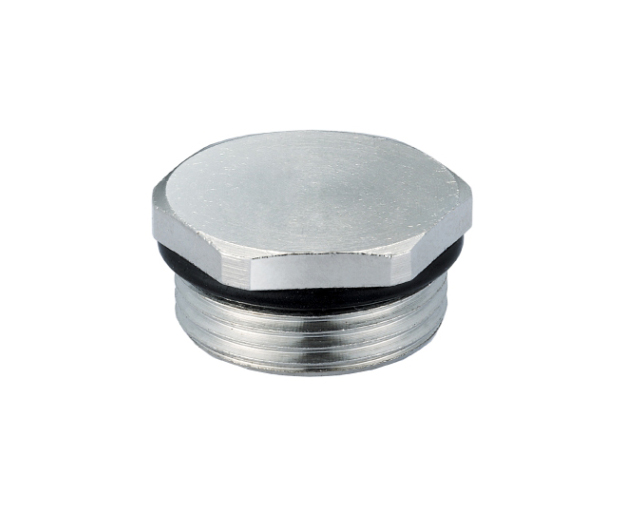

BLIND-42-MS
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-42-MS
Num：3165420101
Part：Cable Connector
Introduction：PG42 metal cover
Download：
BLIND-42-MS
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
PG42 |
| Thread length | 9.0mm |
| Height | 15.0mm |
| Thread outer diameter | 54.0mm |
| Wrench size | 55.0mm |
