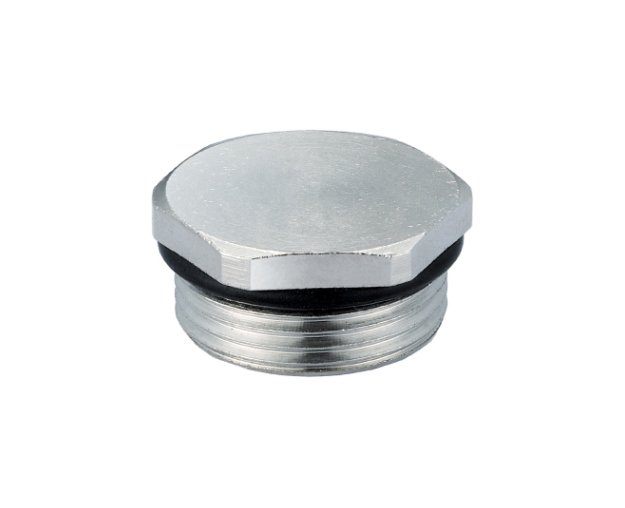

BLIND-24-M
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-24-M
Num：3165240111
Part：Cable Connector
Introduction：M24 metal cover
Download：
BLIND-24-M
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
M24x1.5 |
| Thread length | 7.0mm |
| Height | 11.0mm |
| Thread outer diameter | 24.0mm |
| Wrench size | 27.0mm |
