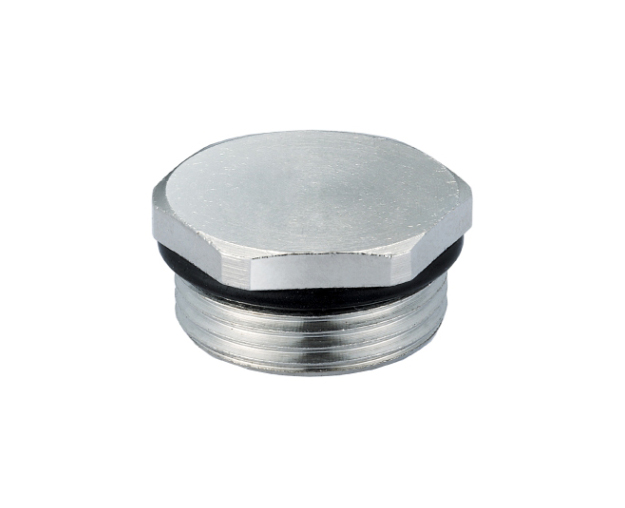

BLIND-36-M
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-36-M
Num：3165360111
Part：Cable Connector
Introduction：M36 metal cover
Download：
BLIND-36-M
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
M36x1.5 |
| Thread length | 8.0mm |
| Height | 12.0mm |
| Thread outer diameter | 36.0mm |
| Wrench size | 40.0mm |
