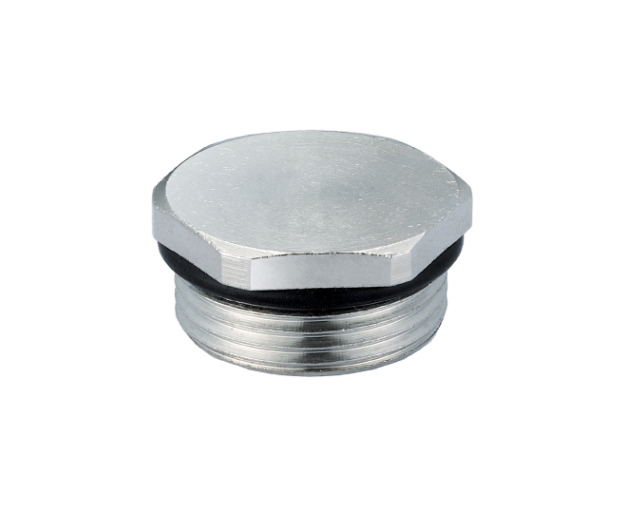

BLIND-40-M
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-40-M
Num：3165400111
Part：Cable Connector
Introduction：M40 metal cover
Download：
BLIND-40-M
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
M40x1.5 |
| Thread length | 8.0mm |
| Height | 13.0mm |
| Thread outer diameter | 40.0mm |
| Wrench size | 45.0mm |
