BLIND-48-M
Type：Cable Connector-XBS(Metal cover)
Model：BLIND-48-M
Num：3165480111
Part：Cable Connector

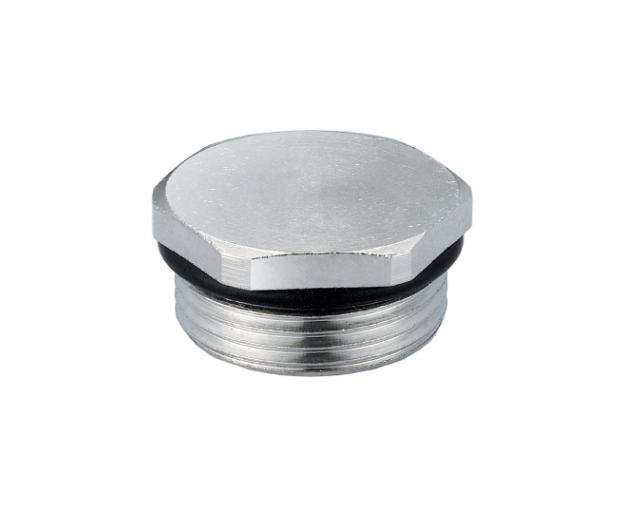

Introduction：M48 metal cover
Download：
BLIND-48-M
Detail
| Metal cover | |
| Material | Brass nickel plating |
| Protection level | IP68 (in case of O-ring) |
| Temperature range | -40℃...+120℃ |
|
Thread size |
M48x1.5 |
| Thread length | 9.0mm |
| Height | 15.0mm |
| Thread outer diameter | 48.0mm |
| Wrench size | 50.0mm |
