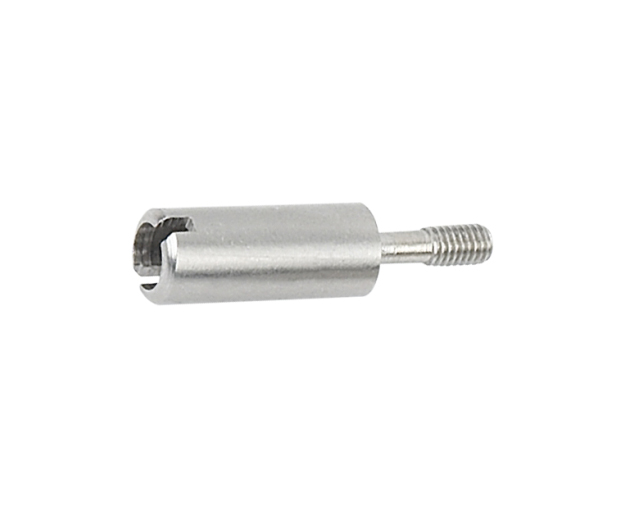

CODING-PIN-M3-F
Type：Accessories-Accessory/guide pin
Model：CODING-PIN-M3-F
Num：0931006524
Part：annex
info：Guide pin for maximum protection against oblique insertion and diagonal pullout
Download：
CODING-PIN-M3-F
Detail
"/N" - nickel plating
"/S" - stainless steel
"/N-A" - nickel plated, with gasket
Maximum protection against oblique insertion and diagonal plugging. There are 16 different uses when used on a housing with one connector or holder; when used on a housing with two connectors or holders 15 different usages.
"/S" - stainless steel
"/N-A" - nickel plated, with gasket
Maximum protection against oblique insertion and diagonal plugging. There are 16 different uses when used on a housing with one connector or holder; when used on a housing with two connectors or holders 15 different usages.
