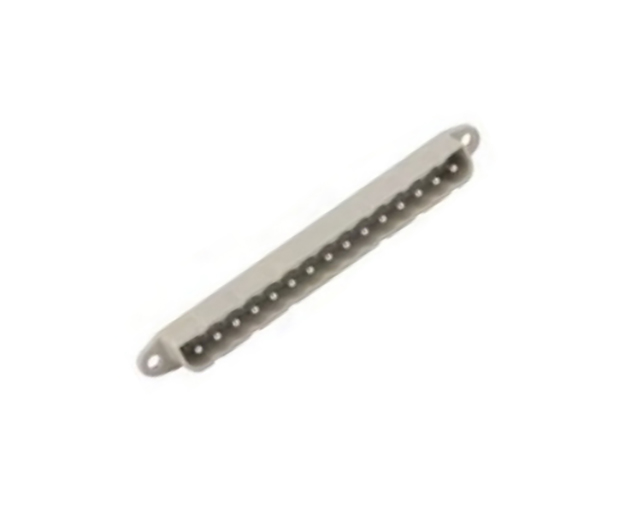

HEEE-015-MC
Type：Inserts-HEEE core series
Model：HEEE-015-MC
Num：2800154101
Should I order another cold pin?：Y>> 16A Crimp contacts
Part：Ferrule
Introduction：15 cores 16A 200V
Download：
HEEE-015-MC
Detail
| Ferrule | |
| Connector pin count | 15+PE |
| Rated current | 16A |
| Rated voltage | 200V |
| Degree of pollution | 3 |
| Rated pulse voltage | 6KV |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flame retardant rating (UL94) | V0 |
| According to UL / CSA rated voltage | 600V |
| Number of pluggable | ≥500 |
| Pin | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Gold plating | |
| Contact resistance | ≤1mΩ |
| Wiring form |
Cold pressure connection |
| Wire specification | 0.14-4.0mm2 AWG 26-12 |
| Stripping length | 7.5mm |
