HVE-003-F
Type：Inserts-HVE core series

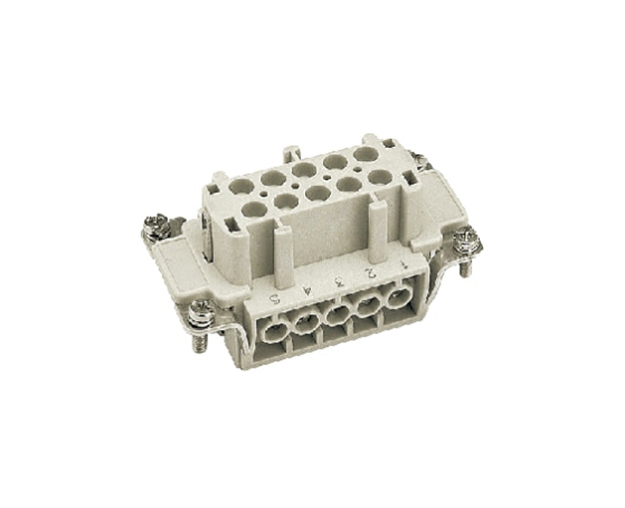

Model：HVE-003-F
Num：2300032201
Should I order another cold pin?：N
Part：Ferrule
Introduction：3-core + 2 for high voltage insurance 16A 830V
Download：
HVE-003-F
Detail
| Ferrule | |
| Connector pin count | 3+PE |
|
Electrical data according to DIN EN 61984 |
|
| －Rated current | 16A |
| －Rated voltage | 830V |
| －Rated pulse voltage | 8KV |
| －Degree of pollution | 3 |
| －When the pollution degree is 2 | 16A 1000V 8KV 2 |
| －or | 16A 720/1250V 8KV 2 |
| －Insurance extension needle | 16A 500V 6KV 3 |
| According to UL / CSA rated voltage | 600V |
| Insurance delay needle | 250V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flammability rating | V0 |
| Number of pluggable | ≥500 |
| Pin | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤1mΩ |
|
Wiring form |
Screw connection |
| －Wire specification | 1.0-2.5mm2 |
| －AWG | 18-14 |
| －Tightening / detecting torque | 0.5N·m |
| －Stripping length | 7.0mm |
