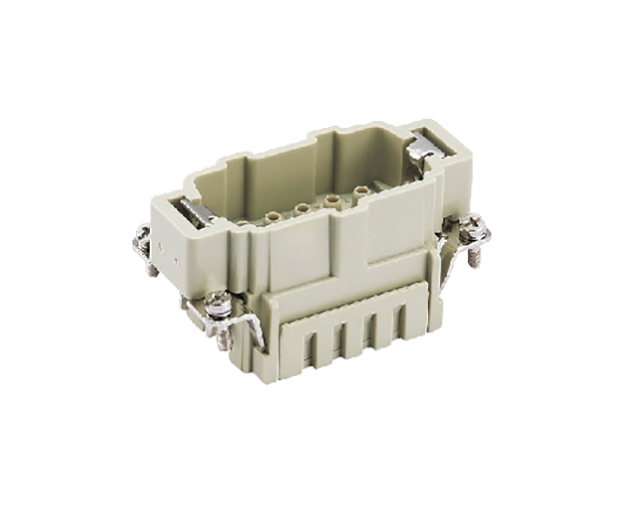

HVE-003-MC
Type：Inserts-HVE core series
Model：HVE-003-MC
Num：2300034101
Should I order another cold pin?：Y>> 16A Crimp contacts Insurance delay needle
Part：Ferrule
Introduction：3-core + 2 for high voltage insurance 16A 830V
Download：
HVE-003-MC
Detail
| Ferrule | |
| Connector pin count | 3+PE |
|
Electrical data according to DIN EN 61984 |
|
| －Rated current | 16A |
| －Rated voltage | 830V |
| －Rated pulse voltage | 8KV |
| －Degree of pollution | 3 |
| －When the pollution degree is 2 | 16A 1000V 8KV 2 |
| －or | 16A 720/1250V 8KV 2 |
| －Insurance extension needle | 16A 500V 6KV 3 |
| According to UL / CSA rated voltage | 600V |
| Insurance delay needle | 250V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flammability rating | V0 |
| Number of pluggable | ≥500 |
| Pin | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤1mΩ |
|
Wiring form |
Cold pressure connection |
| －Wire specification | 0.14-4.0mm2 |
| －AWG | 26-12 |
|
－Stripping length |
7.5mm |
|
|
|
