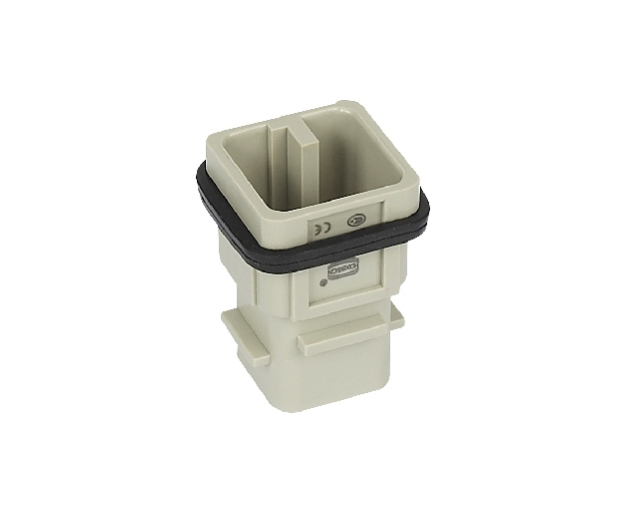

HD-008-MC
Type：Inserts-HD core series
Model：HD-008-MC
Num：2020084101
Should I order another cold pin?：Y>> 10A Crimp contacts
Part：Ferrule
Introduction：8-core 10A ~50V/-120
Download：
HD-008-MC
Detail
| Ferrule | |
| Connector pin count | 8+PE |
| －Rated current | 10A |
| －Rated voltage | ~50V/-120V |
| －Rated pulse voltage | 0.8KV |
| －Degree of pollution | 3 |
| －According to UL / CSA rated voltage | 50V |
| －Rated voltage (DC voltage) | 120V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flame retardant rating | V0 |
| Number of pluggable | ≥500 |
| Pin | |
| Material | Copper alloy |
| Surface treatment | Silver Gold plating |
| Contact resistance | ≤3mΩ |
| Cold pressure connection | |
| －Wire specification | 0.14-2.5mm2 |
| －AWG | 26-14 |
