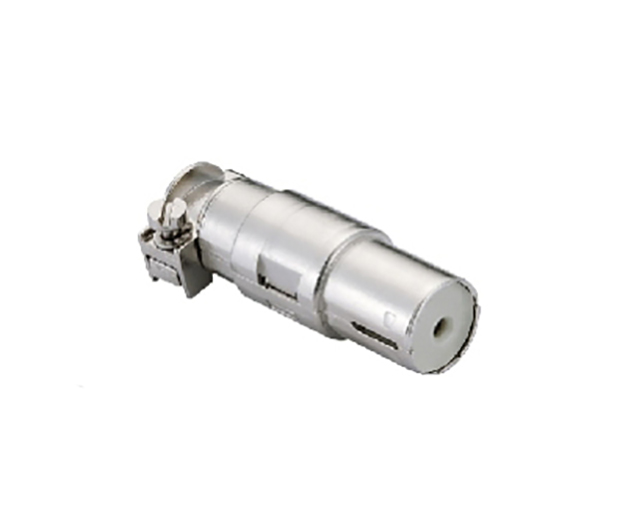

EMC-001-FC/E
Type：Inserts-HM (EMC) core series
Model：EMC-001-FC/E
Num：2581014201
Should I order another cold pin?：Y>> 16A Crimp contacts
Part：Ferrule
Introduction：Coxa module with pin, E-type Coax 1 pin
Download：
EMC-001-FC/E
Detail
| Ferrule | |
| Connector pin count | 1 |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flammability rating | V0 |
| Number of pluggable | ≥500 |
|
Q-Coax needle |
|
| Number of needles | |
| －Q-Coax | 4+shield |
| －High density Q-Coax | 8+shield |
| Electrical data according to EN 61 984 | |
| －Q-Coax | 10A 50V 0.8kv 3 |
| －High density Q-Coax | 5A 50V 0.8kv 3 |
| Rated current | 10/5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8kv |
| Degree of pollution | 3 |
| Material | |
| －Insulator | Polycarbonate |
| －Outer conductor |
Zinc alloy |
| Contact resistance | ≤4mΩ |
| Range of working temperature | -40℃...+85℃ |
|
According to UL94 flame retardant rating |
V0 |
| Outer conductor surface | nickel |
| Cable diameter | 3-9.5mm |
