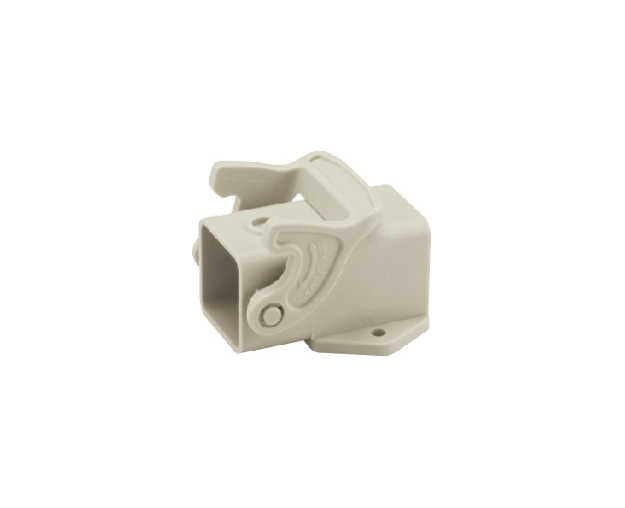

H3A-AGS
Type：shell-H3A plastic case (IP65)
Model：H3A-AGS
Num：1509031111
Part：Lower housing
Introduction：3A plastic case; common structure; open hole installation; single button; side outlet
Download：
H3A-AGS
Detail
| Material | Polycarbonate |
| Colour | Gray (RAL 7032) |
| Interlocking element | |
| ---Interlocking method | Plastic elastic pressing |
| ---material | Polyamide |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
