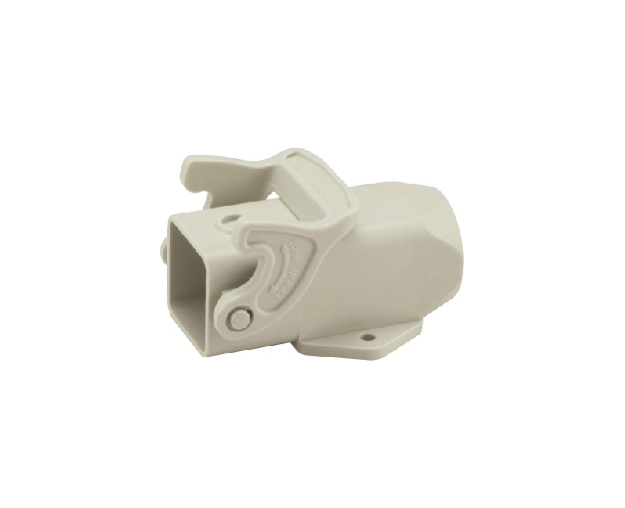

H3A-AGSV-M20
Type：shell-H3A plastic case (IP65)
Model：H3A-AGSV-M20
Num：1619031120
Part：Lower housing
Introduction：3A plastic case; common structure; surface mounting; single button; M20
Download：
H3A-AGSV-M20
Detail
| Material | Polycarbonate |
| Colour | Gray (RAL 7032) |
| Interlocking element | |
| ---Interlocking method | Plastic elastic pressing |
| ---material | Polyamide |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
