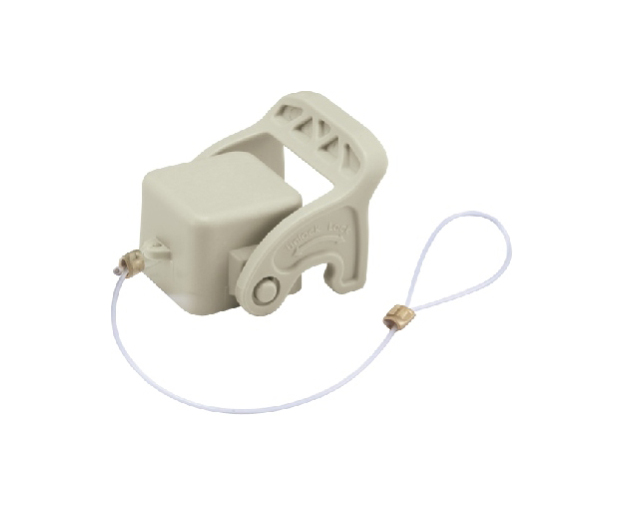

H3A-KDT/M (with male core)
Type：shell-H3A plastic case (IP65)
Model：H3A-KDT/M (with male core)
Num：1010031100
Part：cover
Introduction：Protective cover with male core
Download：
H3A-KDT/M (with male core)
Detail
| Material | Polycarbonate |
| Colour | Gray (RAL 7032) |
| Interlocking element | |
| ---Interlocking method | Plastic elastic pressing |
| ---material | Polyamide |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
