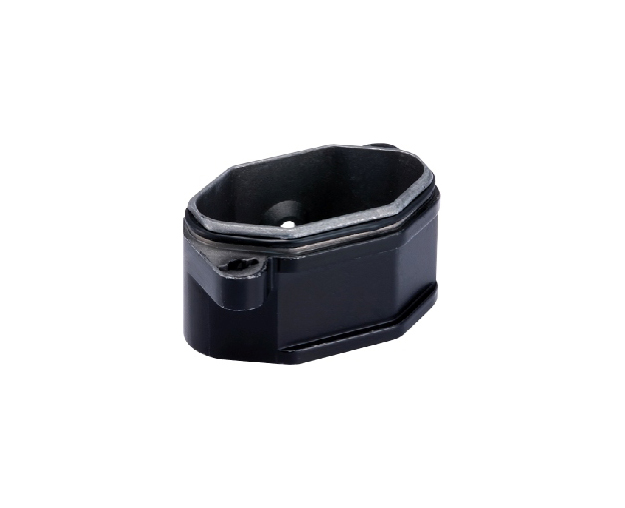

H3APR-MAG
Type：shell-H3A housing (IP68)
Model：H3APR-MAG
Num：1930030000
Part：Lower housing
Introduction：HP3A/H high protective casing; common structure; open hole installation; spraying; bolt interlock
Download：
H3APR-MAG
Detail
|
Surface treatment |
Spraying |
|
Material |
Cast zinc |
|
Colour |
black |
|
Interlocking element |
|
|
---Interlocking method |
Bolted |
| ---material |
stainless steel |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP68/IP69K |
