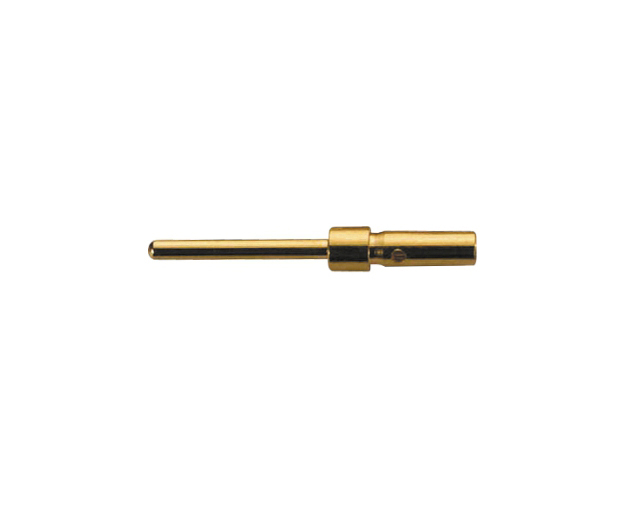

DAM-0.33
Type：Plugin-5A Crimp contacts
Model：DAM-0.33
Num：2070011033
Part：Pin
Introduction：5A cold crimp pin, gold plated, suitable for HM, EMC-008, D-SUB, HR23 ferrule
Download：
DAM-0.33
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment |
Gold plating |
| Contact resistance | ≤3mΩ |
| Wire gauge | |
| －mm2 | 0.25-0.33mm2 |
| －AWG | 26-22 |
| Stripping length | 5mm |
