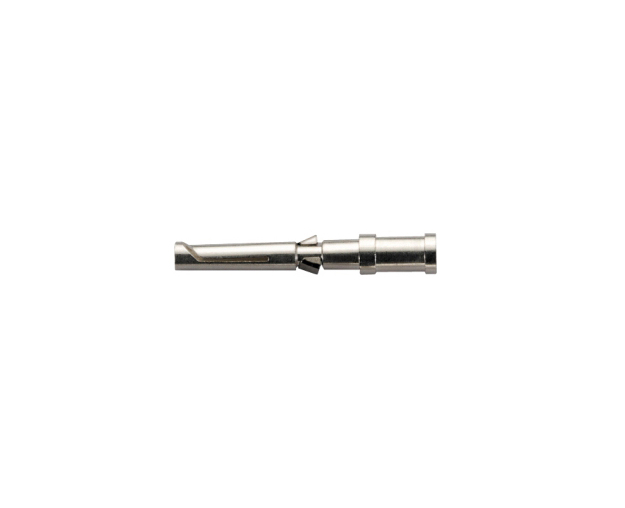

CDF-1.5
Type：Plugin-10A Crimp contacts
Model：CDF-1.5
Num：2020002015
Part：Pin
Introduction：10A cold crimp pin, silver plated for HD, HDD, HM, HK, HQ ferrules
Download：
CDF-1.5
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤3mΩ |
| Wire gauge | |
| －mm2 | 1.5mm2 |
| －AWG | 16 |
| Stripping length | 8mm |
