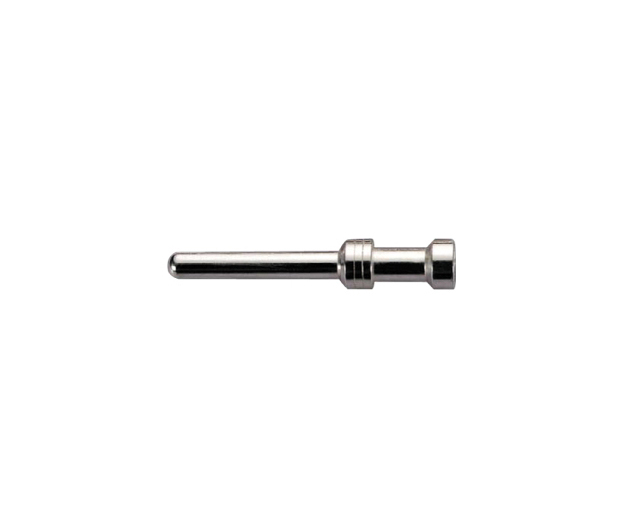

CEM-1.5
Type：Plugin-16A Crimp contacts
Model：CEM-1.5
Num：2030001015
Part：Pin
Introduction：16A cold crimp pin, silver plated (for HAC, HEC, HEE, HM, HK ferrule)
Download：
CEM-1.5
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤1mΩ |
| Wire gauge | |
| －mm2 | 1.5mm2 |
| －AWG | 16 |
| Stripping length | 7.5mm |
