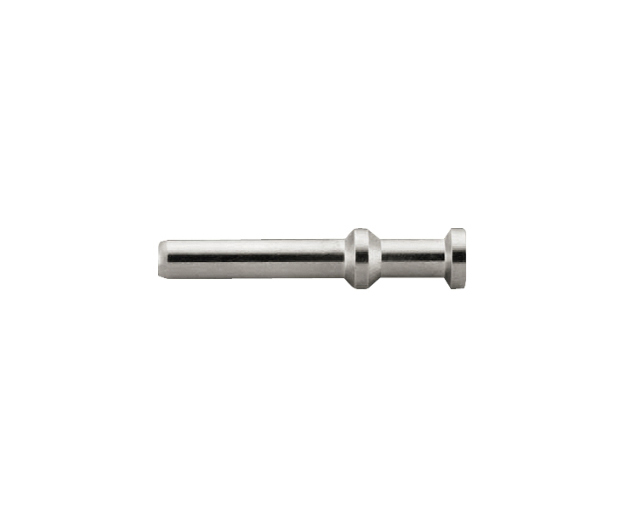

CMM-2.5
Type：Plugin-40A Crimp contacts
Model：CMM-2.5
Num：2040001025
Part：Pin
Introduction：40A cold crimp pin, silver plated (for HM, HK and other ferrules)
Download：
CMM-2.5
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤1mΩ |
| Wire gauge | |
| －mm2 | 2.5mm2 |
| －AWG | 14 |
| Stripping length | 9mm |
