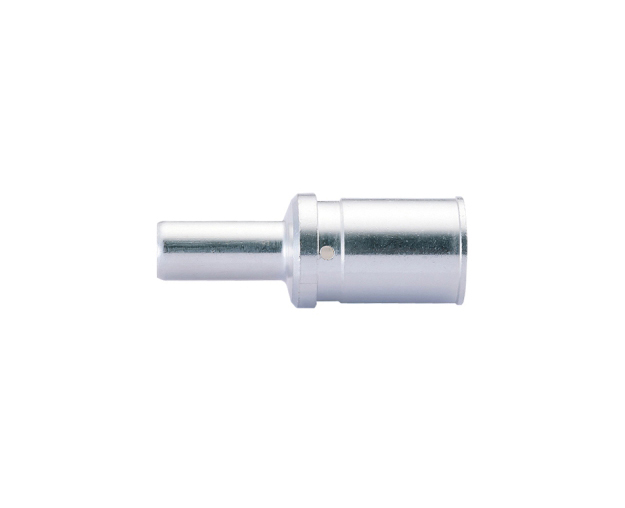

CHM-25
Type：Plugin-200A Crimp contacts
Model：CHM-25
Num：2060001025
Part：Pin
Introduction：200A cold crimp pin, silver plated (for HM ferrule)
Download：
CHM-25
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤0.3mΩ |
| Wire gauge | |
| －mm2 | 25mm2 |
| Stripping length | 22.5mm |
