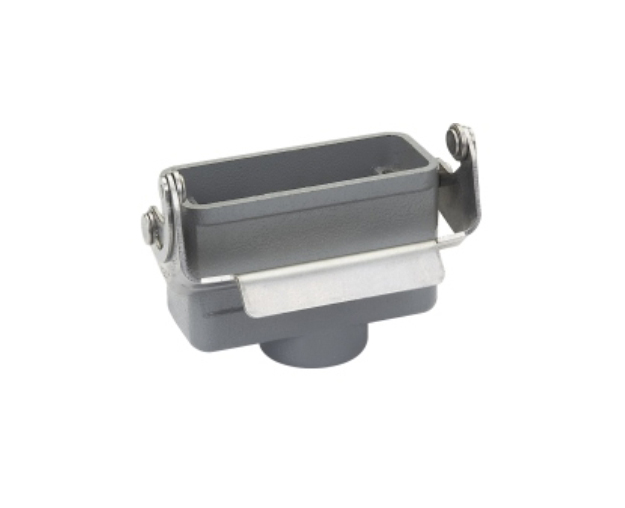

H16A-TBF-LB-PG16
Type：shell-H16A housing (IP65)
Model：H16A-TBF-LB-PG16
Num：1739160016
Part：Lower housing
Introduction：H16A metal shell; common structure; cable butt; single button; PG16
Download：
H16A-TBF-LB-PG16
Detail
| Material |
Cast aluminum |
| Colour | gray |
| Interlocking element | |
| ---Interlocking method | Metal elastic pressing |
| ---material | stainless steel+TPR |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
