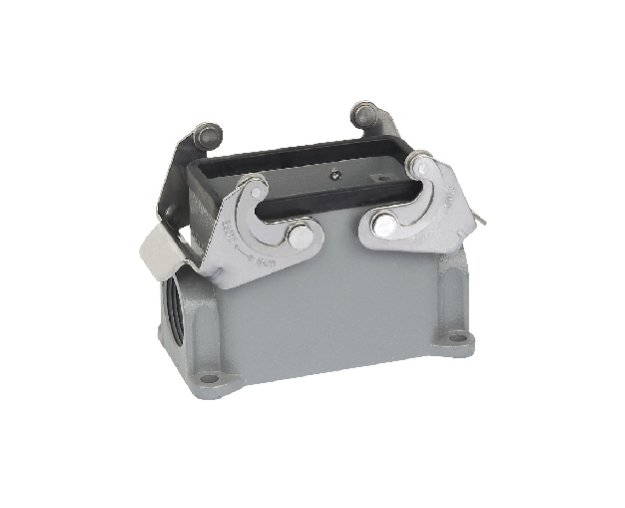

H10B-SGR-2M20
Type：shell-H10B housing (IP65)
Model：H10B-SGR-2M20
Num：1440100220
Part：Lower housing
Introduction：H10B metal shell; common structure; surface mounting; double buckle; 2 incoming line; M20
Download：
H10B-SGR-2M20
Detail
| Material | Cast aluminum |
| Colour | gray |
| Interlocking element | |
| ---Interlocking method | Metal elastic pressing |
| ---material |
stainless steel +TPR |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
