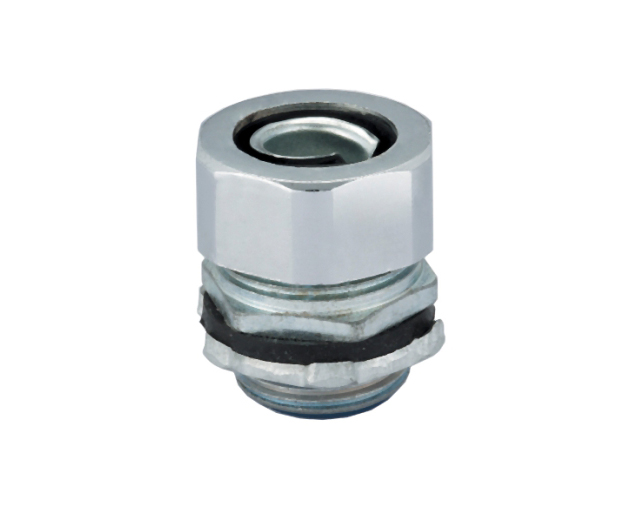

NTC-25-M/D20
Type：Cable Connector-XBS(Externally threaded metal hose connector)
Model：NTC-25-M/D20
Num：3510250124
Part：Cable Connector
Introduction：M25 external thread metal hose connector
Download：
NTC-25-M/D20
Detail
|
Externally threaded metal hose connector |
|
|
Material |
Zinc alloy galvanizing |
|
Seals |
One end is connected to the hose, and the other end is threaded to the box or equipment, which has the characteristics of compact structure and corrosion resistance. |
|
Application |
Motor, cable tray, electrical engineering installation, electric control box, etc. |
|
Thread size |
M25x1.5 |
| With hose | 20mm |
| Thread length | 12mm |
| Outer diameter | 37.5mm |
| Height | 37mm |
